Cutting Plotter

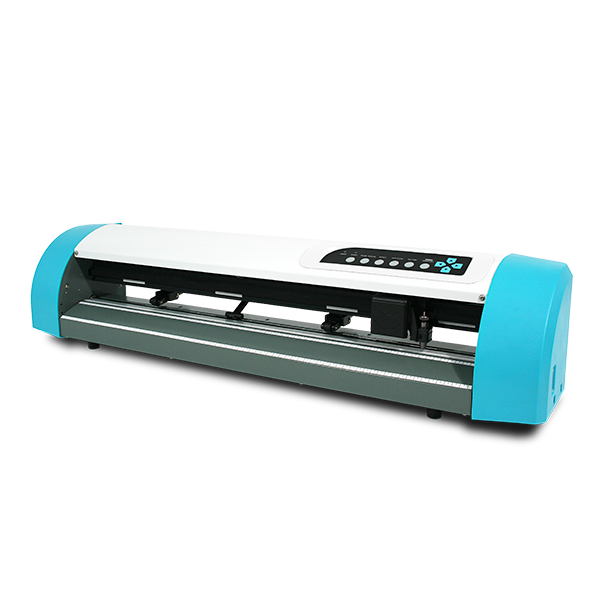

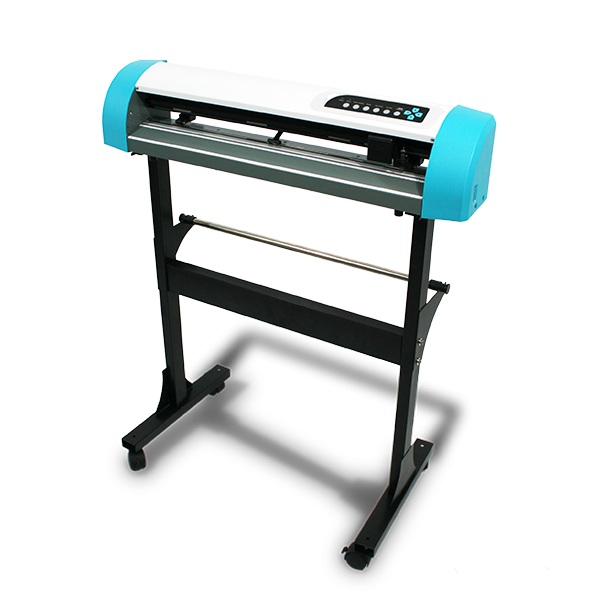

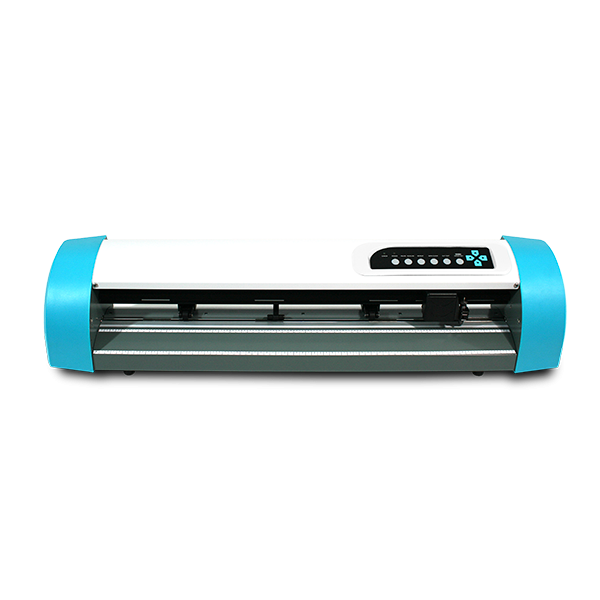

AR-24 Vinyl Cutter
The best choice in a beginner cutting plotter.
With the possession of a posh style, AR-24 performs perfectly in cutting with its optimized cutting speed and force and lead to a stunning cutting quality, yet it is priced at a startup level and is worthy o
4304
4342
4141
4228
1 1
Cutting Plotter

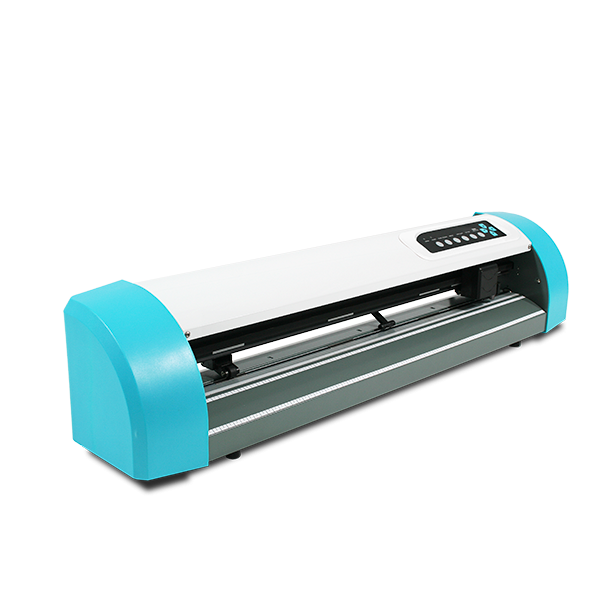

AR-24 Vinyl Cutter
The best choice in a beginner cutting plotter.
With the possession of a posh style, AR-24 performs perfectly in cutting with its optimized cutting speed and force and lead to a stunning cutting quality, yet it is priced at a startup level and is worthy o
INQUIRY

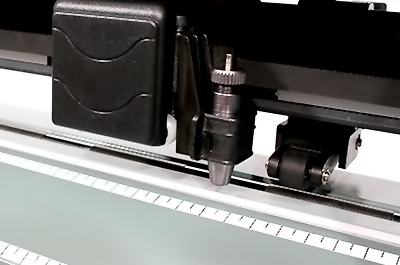

Superior Functionality
GCC AR-24 is built to achieve the optimized cutting abilities with the maximum of 15.7ips (400 mm/sec) cutting speed and 250 grams cutting force; moreover, the cutting width of up to 23.6" support a wide range of applications.

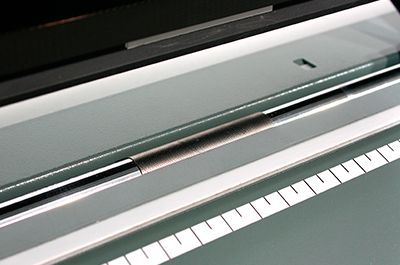

Guarantee 1meter Tracking
GCC AR-24 is equipped with a stable drum that can guarantee 1 meter tracking to ensure quality outputs and saves you from wasted material and cost.

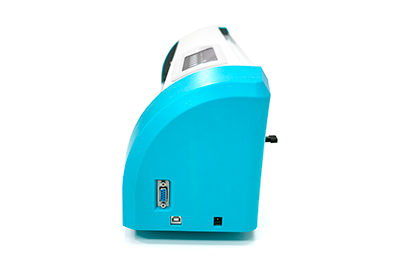

Dual Port Connectivity
GCC AR-24 supports dual-port connectivity with USB and serial ports. The USB port provides faster data transmission between the computer and GCC AR-24. Dual-port connectivity provides sign makers with great flexibility for data transmission.

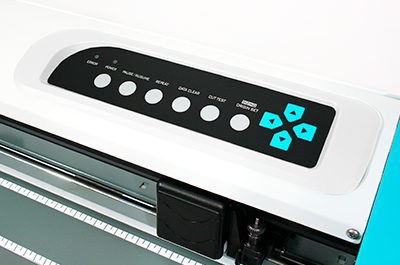

User-friendly Interface
In addition to an ease of use control panel, AR-24 offers the special VLCD software, which provides a simple and intuitive workflow for users of all levels.

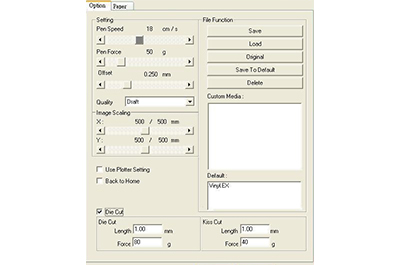

Windows Drivers
GCC AR-24 includes a “one click” Windows driver that allows sign makers to edit signs from CorelDraw and output directly to AR-24. It is very simple and easy to make signs with AR-24.
Safe Blade
Safe Blade
Users can cut off the finished job by the safe blade.
Cutting Blades
Cutting Blades
Users can replace the cutting blade by different materials to meet your need.
Cutting Pad
Cutting Pad
It prevents the blades from becoming blunt quickly.

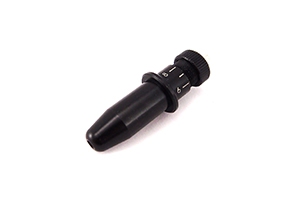

Plastic Blade HolderΦ2.5mm
Plastic Blade HolderΦ2.5mm
Adjusting the blade length to fit your needs.
AR-24
Operational MethodRoller-Type
Max. Cutting Width600mm (23.6")
Max. Cutting Length50m (164')
Max. Media Loading Width71.9cm (28.3")
Number of Pinch Rollers3
Acceptable Material Thickness0.8mm (0.03")
Drive MotorStepper motor
Max. Cutting Force 250 g
Max. Cutting Speed552 mm /sec (21.7 ips) (at 45° direction)
Offset0~1.0 mm (with an increase of 0.025mm)
Memory Buffer32 MB
InterfacesUSB 2.0 (Full Speed), Serial (RS-232C)
Type of CommandHP-GL, HP-GL/2
Mechanical Resolution0.012 mm
Software Resolution0.025 mm
Distance Accuracy±0.254 mm or ±0.1% of move, whichever is greater
Repeatability±0.1mm
Guaranteed Tracking1M
Automatic-Aligning System(AAS II)N/A
Over CutN/A
Curve & Arc SmoothingYes
Configurable OriginYes
Test Cut CapabilityYes
Tangential ModeN/A
RepeatYes
CopyN/A
Diameter of Blade2.5 mm
Control Keys10 Control keys and 2 LED
Power SupplyAC adapter, 24V DC (1.67A)
Power Consumption65.5 watts
Operation Temperature15° C~30° C / 60°F~86° F
Operation Humidity25%~75%
  • Compatible with Windows 7 and above & MAC OS X 10.6 and above. (*Purchasing serial number for “Sure Cuts A Lot” software to work with Mac OS.)
  • The specification and data sheet may vary with different materials used. In order to obtain the best output quality, please maintain the machine regularly and properly.
  • GCC reserves the right to change the specifications at any time without notice.
  • GCC certified material in tracking is Avery MPI 3000.
  • The above listed specification values are effective only when operated with media certified by GCC.
