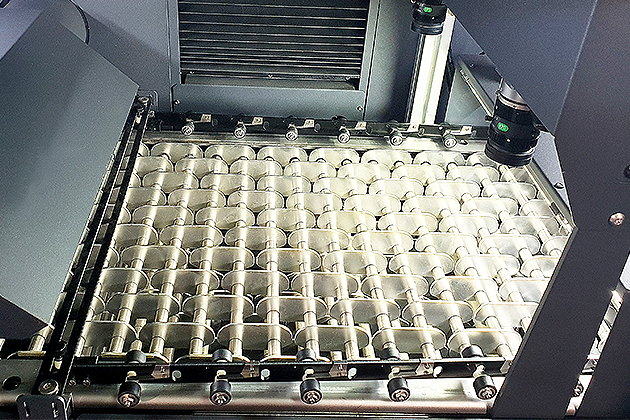

Work Area
Max. Working area up to 300 x 300 mm
DFS Laser Finisher | Laser Engraving, Vinyl Cutter, UV Printer - GCC
Digital Die Cutting Machine

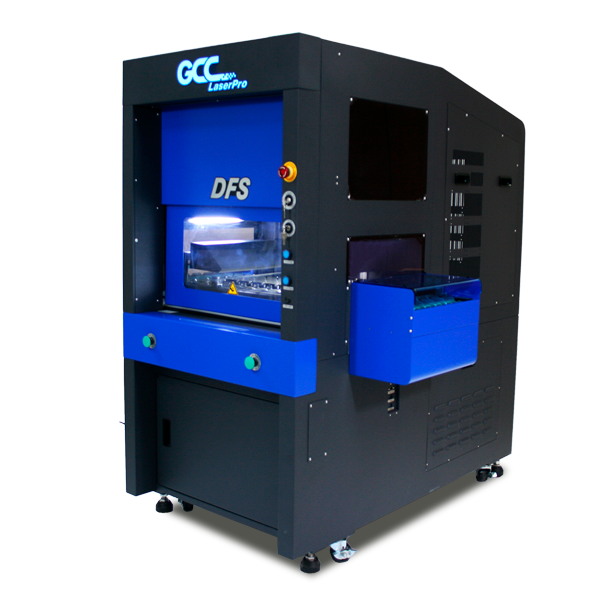

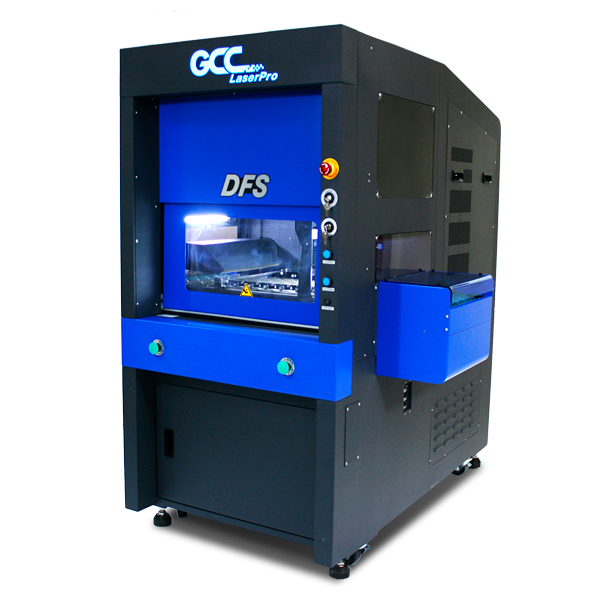

DFS Laser Finisher
LaserPro DFS, our most technologically advanced 3-Axis Galvo, provides you the highest cutting speed & capability, suitable for paper finishing, packaging, label, promotion item…etc. industries. It definitely can assist you to expand your business spectru
1 1
Digital Die Cutting Machine
DFS Laser Finisher
LaserPro DFS, our most technologically advanced 3-Axis Galvo, provides you the highest cutting speed & capability, suitable for paper finishing, packaging, label, promotion item…etc. industries. It definitely can assist you to expand your business spectru
Feature

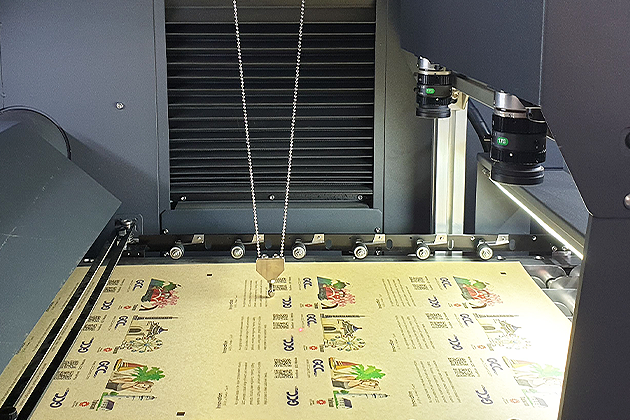

Accept B3 Size Media
Max. media size up to B3

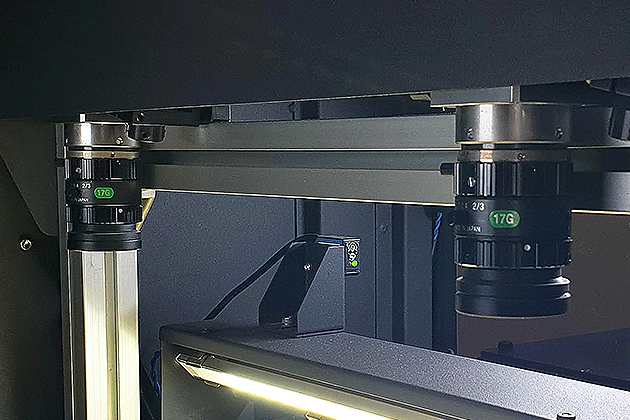

Dual CCD
Two CCD for precise cutting solution
Sturdy and Rigid Chassis
Sturdy and rigid chassis to meet industrial requirement

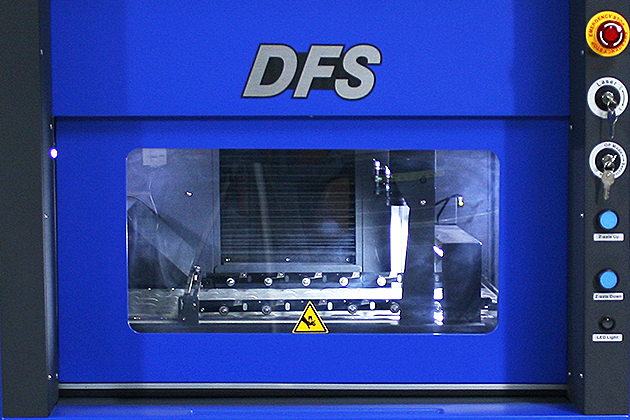

Large Protection Window
Large protection window for easy working process monitoring

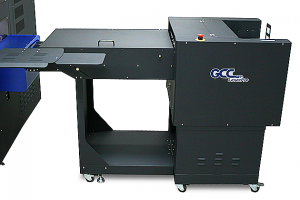

Auto Sheet Feeder-DFS
GCC DFS offers a total solution with auto sheet feeding system that provides labor free operation with high speed laser die cutting. Each set comes with the media tray which collects completed cutting sheets.

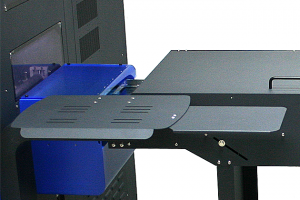

Screen Frame Module for Laptop
Optional Screen Frame Module for Laptop can help to put your NB, laptop right beside the machine and makes it more convenient when operating.
| DFS | DFS30-80GT | DFS30-100GT | DFS30-150SR | DFS30-200SR |
|---|---|---|---|---|
| Field Size of Galvo | 320 x 320 mm (12.6 x 12.6") | |||
| Max. Line Speed | 11m/sec (depending on cut lengths) | |||
| Material Thickness | 0.15 mm ~ 0.3 mm (0.006" x 0.012") | |||
| Laser Source | CO2 laser, 10.57-10.63μm wavelength (CW) | CO2 laser, 10.57-10.63μm wavelength (CW/Pluse) | ||
| Laser Wattage | 80W | 100W | 150W | 200W |
| Cooling | Air-cooled | Water-cooled | ||
| Media Size | Max. Media size 353 x 500 mm (13.9" x 19.69") | |||
| Working Area | 320 X 320 mm / 320 x 500 mm (12.6" x 12.6" / 12.6" x 19.69") with conveyor | |||
| Machine Dimension | L 1607 x W 1403 x H 1730 mm (63.27" x 55.24" x 68.11") | |||
| Conveyor | Standard | |||
| Conveyor Drive | Servo Motor | |||
| Media Loading | Max. 2 kg | |||
| CCD RecognitionCompatiable | CCD x 2 | |||
| Operating Systems | Windows 7/ 8/ 8.1/ 10 (32 & 64Bit) | |||
| Computer Interface | USB 3.0 port x 2 (only support USB 3.0), Ethernet | |||
| Display Panel | Button Base | |||
| Safety | Class 4 Laser Product Compliant with EN60825-1:2007 | |||
| Electricity | 200-240V AC | |||
| Power Consumption | 4500W (Include: Laser and conveyor system) | 6100W(Include: Laser and conveyor system) | ||
| Air Exhaust System | External exhaust system with minimum flow rate 1350 m3/hr (795 cfm) is required, one 4" connection on the machine. | |||
| Auto Sheet Feeder (Optional Item) | ||||
| Max. Speed | 45M(148ft) / min | |||
| Max. Paper Width | 13.9" x 19.7" (353 x 500mm) | |||
| Paper Weight | 120gsm~500gsm | |||
| Min. Paper Size | 8 1/2” (216mm) | |||
| Power Requirement | 110/220V, 50/60HZ, 4.6A/2.3A Fuse Rating 6A TimeDelay | |||
| Dimension | 32.4” x 30.8” x 47.1” (823 x 782 x 1196mm) | |||
| Weight | 305lbs (120Kgs) | |||
* Speed does not equal to throughput. See dealer or visit www.GCCworld.com for more details. ∆ Specifications are subject to change without prior notice. | ||||
