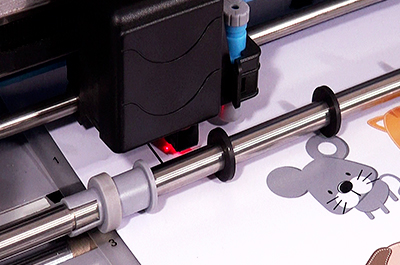

Enhanced AAS II Contour Cutting System
With AAS II contour cuttinig system, users can print graphics and use i-Craft™ 2.0 to cut the contour automatically for print and cut application in an easy way, including stickers, décor, cards and so on.
i-Craft™ 2.0 Vinyl Cutter | Laser Engraving, Vinyl Cutter, UV Printer - GCC
Portable Cutting Plotter

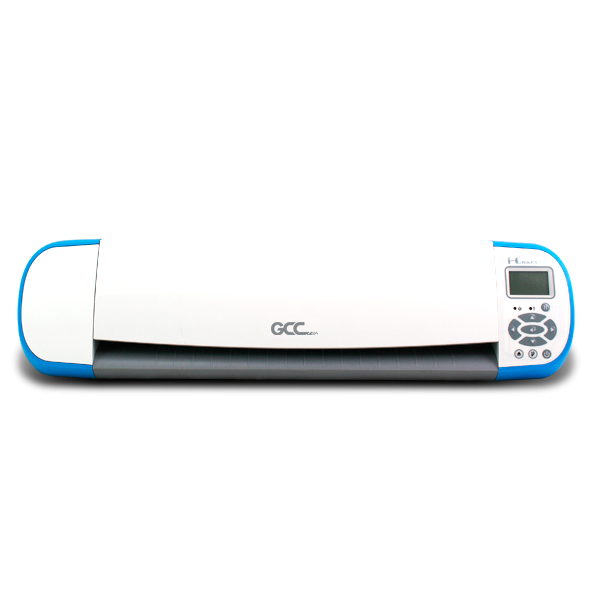

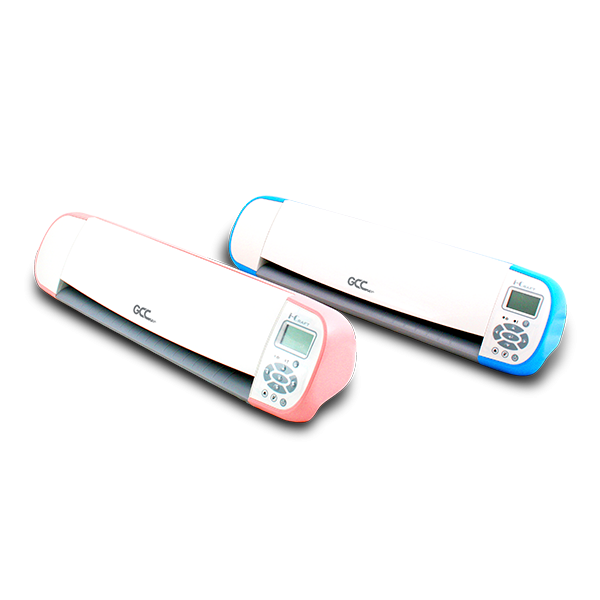

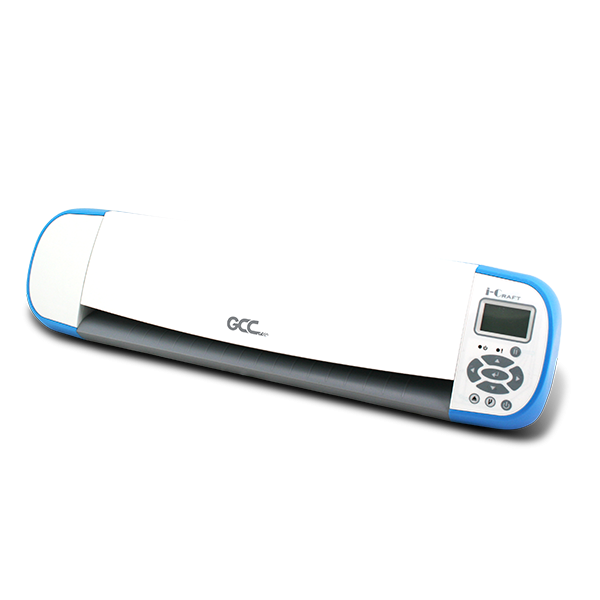

i-Craft™ 2.0 Vinyl Cutter
Turn your creativity into real business. i-Craft™ 2.0, a portable desktop cutting plotter with the highest cutting force and cutting speed, ideal for micro-business, startups, schools, restaurants, offices and stores. Enter the business with affordable in
1 1
Portable Cutting Plotter
i-Craft™ 2.0 Vinyl Cutter
Turn your creativity into real business. i-Craft™ 2.0, a portable desktop cutting plotter with the highest cutting force and cutting speed, ideal for micro-business, startups, schools, restaurants, offices and stores. Enter the business with affordable in
Feature
350 Grams of Cutting Force
The maximum of 350g cutting force extends the applicability of a i-Craft™ 2.0 to cut various materals, such as cardstock paper, flock heat transfer, stencil, soft magnetic, and more.

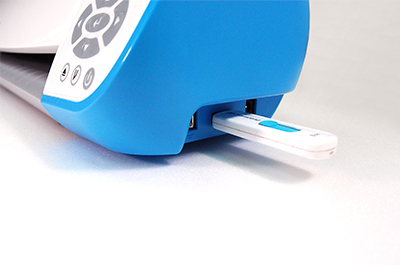

USB Flash Drive Port
Users can create their designs wherever they want and save it to USB flash drive for later uses.
i-Craft™ 2.0 eliminates the limitation of creation.
i-Craft™ 2.0 eliminates the limitation of creation.

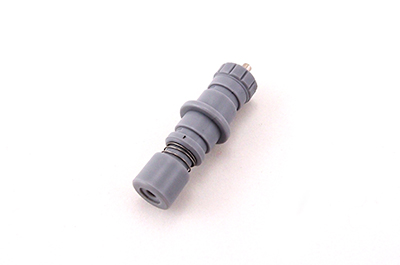

Auto-Adjusted Blade Holder
Equipped with an auto-adjusted blade, i-Craft™ 2.0 can cut the designs perfectly without complicated balde adjustment procedure.

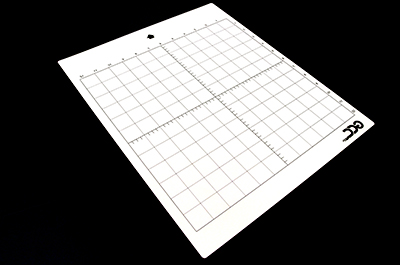

Adhesive Sheet
Adhesive sheet can be used to fix different materials from card stock to soft magnet. It provides a very common used cutting area, 12 x 12 inches, and a more extensive cutting area, 12 x 24 inches (optional item).

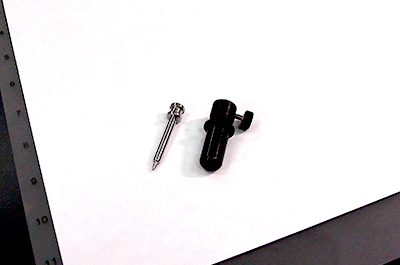

Diversified Tools
Various optional items available for i-Craft™ 2.0, such as advanced blade, engraving tip, color pen holder, creasing tool, and desktop media holder system to make more posibilities.
Large LCM Screen
The large LCM screen can show the selected function and make it easy to operate. Ease of use user interface turns every user to be a scrapbooking expert.
Intuitive AP Software and Driver
i-Craft™ 2.0 standard software is compatible with a diversity of file formats including SVG, PDF, AI, EPS, PLT, PNG, and WPC, providing the optimum compatibility. Better than that, GCC exclusive driver for i-Craft™ allows users to use familiar design software and print to i-Craft™ 2.0 via driver with ease, extending the compatibility and user friendliness.
Power Saving Mode
Enable power saving mode to turn off screen display automatically when i-Craft™ 2.0 not be operated for a period of time.

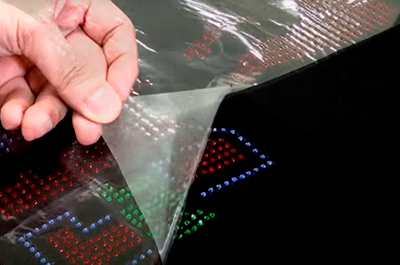

Rhinestone Application
Thanks to the superior cutting force and standard software function, i-Craft™2.0 handles rhinestone stencil cutting with ease, people are amazed with its great versatility.
Safe Blade
Users can cut off the finished job by the safe blade.

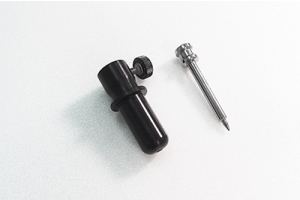

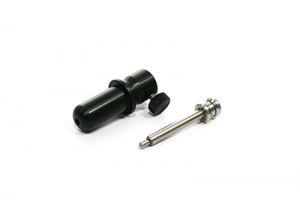

Engraving Tip Assembly with Holder
Users can engrave on the stainless steel tags with engraving tip assembly.

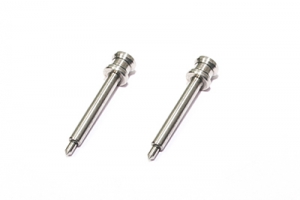

Engraving Tip Package (2 pcs)
If the engraving tip get blunt, users should replace new one.

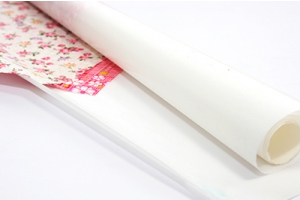

Fabric Interfacing
Applying fabric interfacing to the cloth you like and iron it , you can create custom accessories.

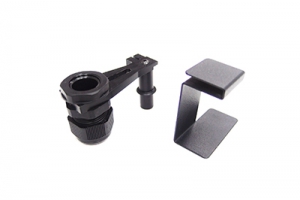

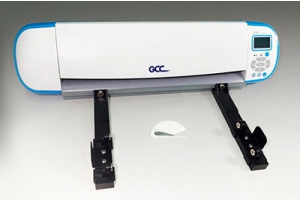

Desktop Roll Media Support System
To support the roll media to cut long images. The system includes one safe blade.

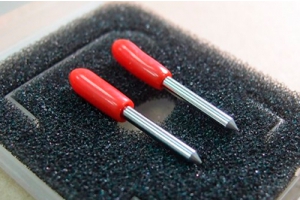

Standard Blade
For cutting 300 lbs of cardboard, general copy paper, vinyl, transfer film, flock heat transfer vinyl, laminating film, PU film, rhinestone templates, and 0.5mm thick soft magnet etc.
Advanced Blade
For cutting 350 lbs of cardboard, flock heat transfer vinyl, laminating film, PU film, rhinestone templates, and 0.8mm thick soft magnet etc.

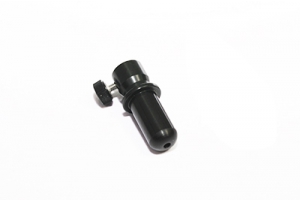

Auto-Adjusted Blade Holder
Users can cut the designs perfectly without complicated blade adjustment procedure.

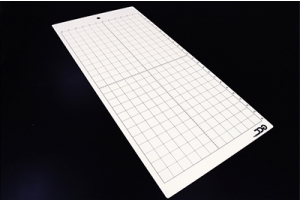

12"x24" Adhesive Sheet
Adhesive sheet can be used to fix different materials from card stock to soft magnet. It provides an extensive cutting area, 12 x 24 inches.

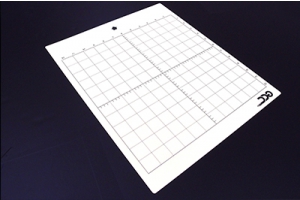

12"x12" Adhesive Sheet
Adhesive sheet can be used to fix different materials from card stock to soft magnet. It provides a common used cutting area, 12 x 12 inches.
Debossing Tool with Tool Holder
Using debossing tool to create unique designs.

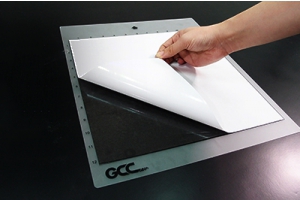

Foam Adhesive Sheet
Applying with debossing tool to create more possibilities.
Versatile Pen Holder
Putting pen diameter within 8-14mm in the pen holder, i-Craft™ 2.0 can draw beautiful cards with it automatically.
Plastic Blade HolderΦ2.5mm
Adjusting the blade length to fit your needs.
Cutting Pad
It prevents the blades from becoming blunt quickly.
Tool Holder
To place engraving tip inside.
| Model | i-Craft™ 2.0 |
| Operational Method | Roller-Type |
|---|---|
| Max. Cutting Width | 305 mm (12") |
| Max. Cutting Length | up to 1000 mm |
| Max. Media Loading Width | 330 mm (13") |
| Number of Pinch Rollers | 2 |
| Acceptable Material Thickness | 0.8 mm (0.03") |
| Drive Motor | Stepper motor |
| Max. Cutting Force | 5 ~ 350 g |
| Max. Cutting Speed | 300 mm/sec (12ips) |
| Offset | 0~1.0 mm (with an increase of 0.025 mm) |
| Memory Buffer | 32 MB |
| Interfaces | USB 2.0 (Full Speed), USB flash drive (FAT16 / FAT32) |
| Type of Command | HP-GL, HP-GL/2 |
| Mechanical Resolution | 0.05 mm |
| Software Resolution | 0.025 mm |
| Distance Accuracy | ±0.254 mm or ±0.1% of move, whichever is greater |
| Repeatability | ±0.1 mm |
| Automatic-Aligning System | Completely Automatic Contour Cutting System for print to cut solution |
| Test Cut | Yes |
| Repeat and Copy | Yes |
| Over Cut | Yes |
| Control Panel | LCD panel |
| Diameter of Blade | 2.5 mm |
| Power Supply | AC 100-240V, 50~60 Hz (auto switching) |
| Power Consumption | max 40 watts |
| |
GreatCut
- Professional cut plug-in for Corel DRAW, Illustrator, Freehand, AutoCAD
- Cutting by color
- Registration marks with “Print & Cut” Support
- Plot Manager
- Free bundle with vinyl cutters (for i-Craft™ is an optional item)
- Creasing function function is not supported. This function only work when used with GCC driver.
FlexiSign 19
- QR Code
- Barcode
- Combine function
- Bitmap Edit
- More powerful than SignPal
- Creasing function and Multiple pen function are not supported. These functions only work when used with GCC driver.
SignPal 19
- Achieve to Cloud
- Cut Order
- Optimize Cutting Order
- Autotrace
- Text Tool
Sure Cuts A Lot
- Multi-languages interface
- iOS tablet app Sure Cuts A Lot 3 available (i-Craft™ output only)
- Available for Windows & Macintosh OSX
- Import various file formats, including SVG & PDF
- Works with your installed TrueType & OpenType fonts, as well as thousands of free fonts available on the Internet.
- Support to multiple pen function (Cut by color).
- Creasing Ability (Creasing Model Only)
Sure Cuts A Lot Pro
- Multi-languages interface
- Available for Windows and Macintosh
- Import various file formats, including SVG, PDF, DXF, and PLT
- More functions: Weeding, Tilling, 3D extrude…
- Support to multiple pen function (Cut by color).
- Creasing Ability (Creasing Model Only)
