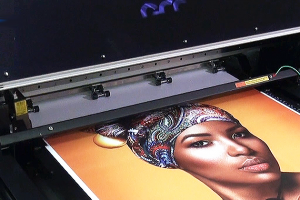

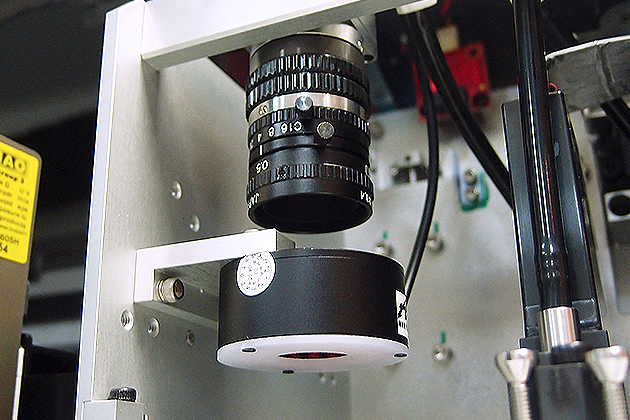

CCD Module
CCD module with automated image scale and rotate compensation allows spot varnishing to designated area.
JV-240UV Varnish Printer | Laser Engraving, Vinyl Cutter, UV Printer - GCC
Digital Printing Machine

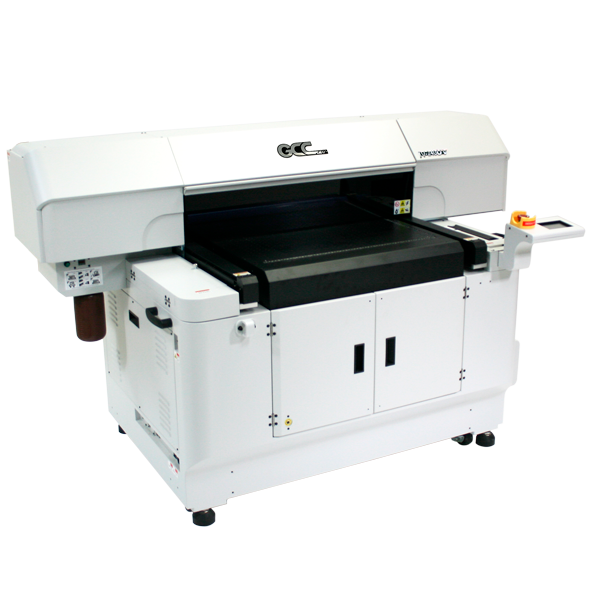

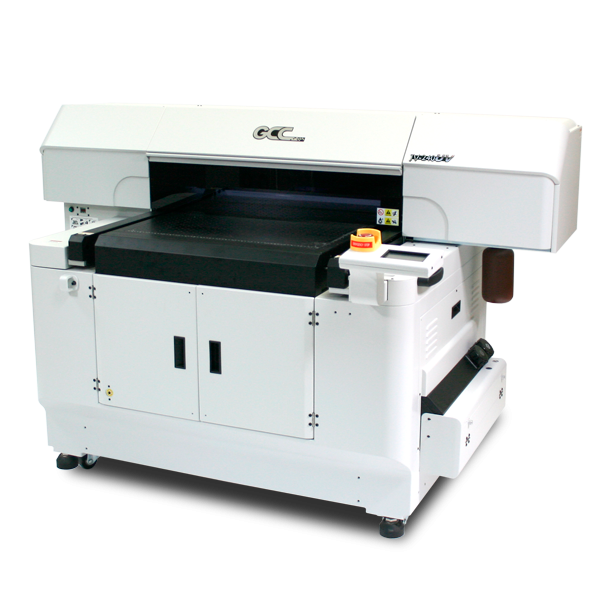

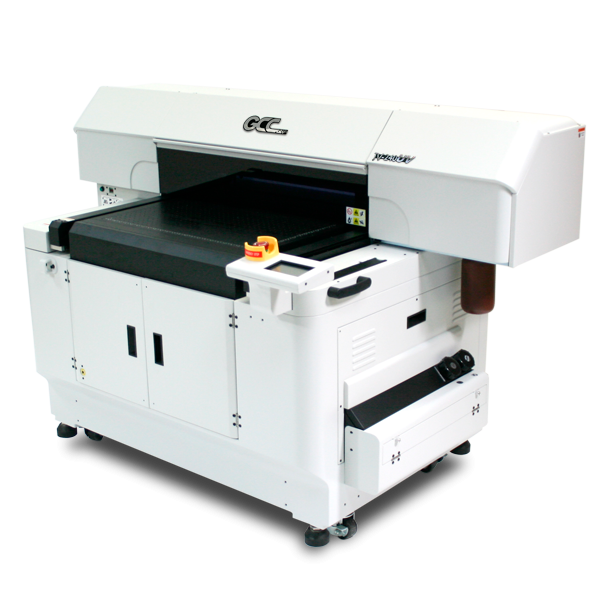

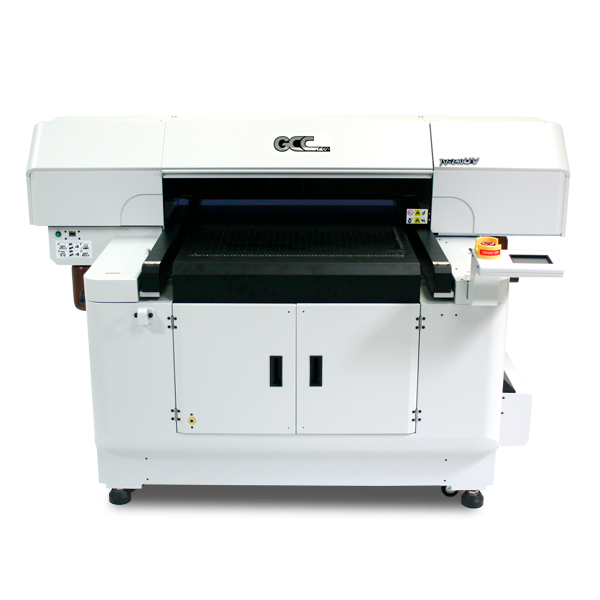

JV-240UV Varnish Printer
The GCC JV-240UV varnish machine provides clear and shiny print finishing and tactile sensation to printed images which upgrade the design to a premium look and increase perceived value.
1 1
Digital Printing Machine
JV-240UV Varnish Printer
The UV coating produced by GCC JV-240UV turns each of your printed product become a masterpiece.
Feature

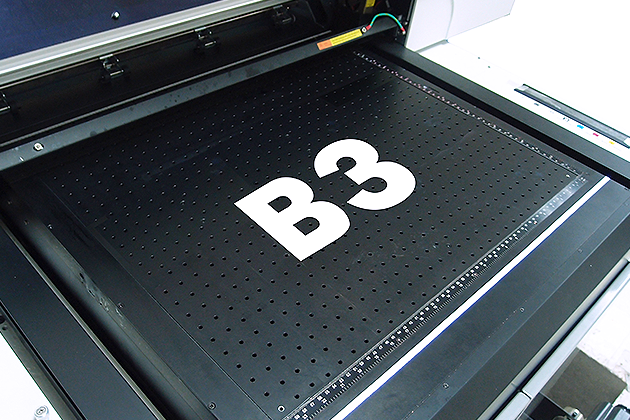

Accept B3 Size Media
Up to B3 plus size work area (24 x 15 in./609 x 380 mm) accepts a wide range of sheet format and allows various applications.

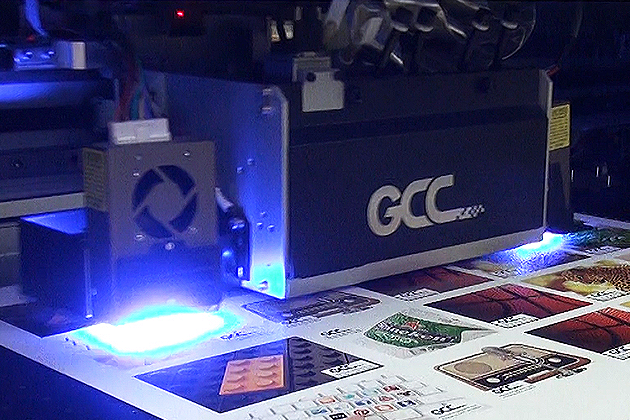

Dual UV LED Lamps
GCC JV-240UV flatbed varnish printer equipped with dual UV LED lamps to reach high throughput, energy saving and environment protection goals.

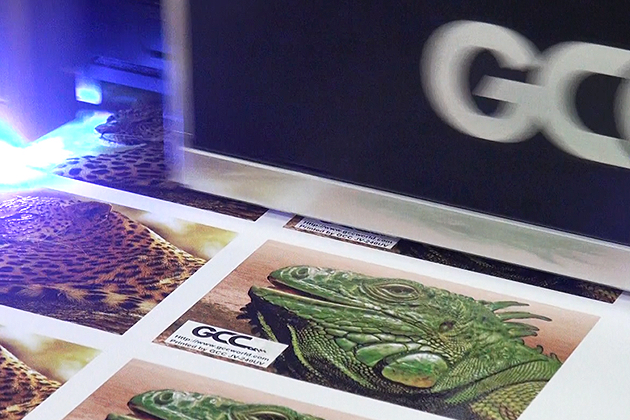

Unbeatable Throughput
JV-240UV print speed is higher than 5 square meters per hour for 4 print heads model suggesting high profitaibility for the business.
Auto Media Calibration (AMC™)
Auto Media Calibration (AMC™) gauges the distance between the print heads so the loaded media can be automatically detected and adjusted to the optimized position based on the thickness of the loaded media.

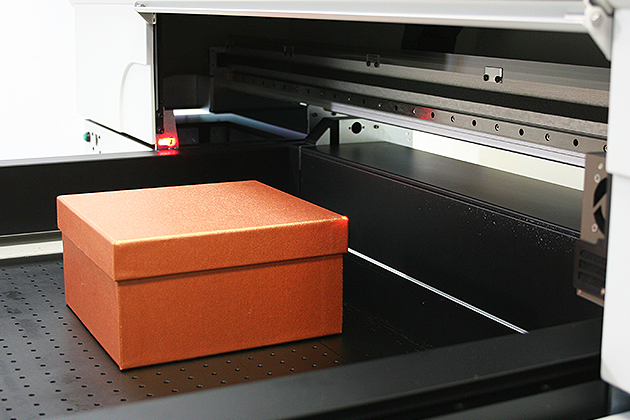

Printhead Gap Auto-Adjustment
Printhead Gap Auto- Adjustment lowers the platform automatically when detecting obstacles that block the movement of printhead before printing to avoid printhead damages.

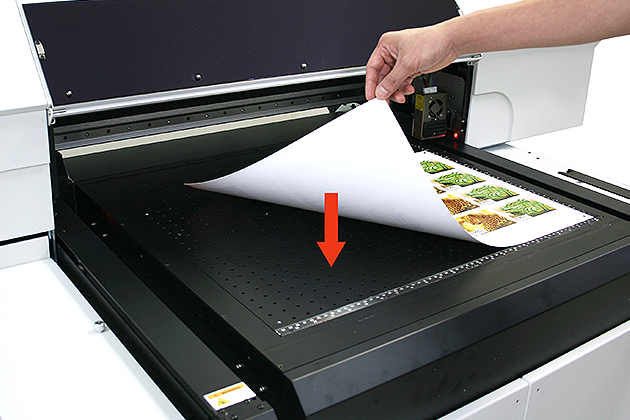

Built-in Down Vacuum Table
Hold the sheet media flat onto the working area by vacuum force to achieve optimized printing quality.

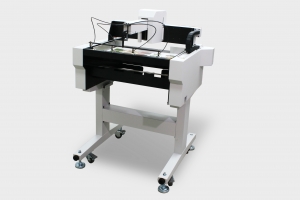

Auto Feeder
Auto sheet media feeding system delivers an automated process for varnishing production. Incorporated with auto feeder, JV-240UV enables users to handle the sheet material from media loading, spot varnishing to collecting in a continuous, unattended and efficient manner.
Anti-static Bar
Provides powerful static elimination while printing to enhance the printing quality.
| Printing Method | On-demand Piezo head | ||
|---|---|---|---|
| Print Head (Drop Size) | UV printing dedicated printhead, 14pl | ||
| Printing Area (W x L) | 609.6 x 380 mm (24 x 15 in.) | ||
| Max. Media Size (W x L x H) | Size | 609.6 x 380 x 170 mm (24 x 15 x 6.7 in.) | |
| Weight | Less than 15 kg | ||
| Media Height Adjustment | AMC™ | ||
| Mark Detection | CCD module for automatic positioning | ||
| Max. Print Speed | 45 B3 sheets/hr | ||
| Varnish Thickness | 0.52 mm (with base printing) | ||
| Print Accuracy | +/- 0.4 mm | ||
| Ink | Type | UV curable ink | |
| Capacity | 1 liter | ||
| Ink Curing Unit | Dual UV LED lamps | ||
| Distance Accuracy – When Printing | Error of less than +/-0.3% of distance traveled, or+-0.3mm (0.01 inch), whichever is greater | ||
| Z axis Movement | Motorized | ||
| Control Panel | Touch Screen | ||
| Interface | Ethernet 1000BASE-T | ||
| Operating Environment (Temperature/Humidity) | 22°C -30°C (71.6°F- 86°F) / (40%-60% humidity), higher is recommended | ||
| Operating Voltage | 110 - 240VAC, 50/60HZ | ||
| Power Consumption-Operating | 115V AC (60HZ) (Max. 270W), 220V AC (50HZ) (Max. 260W) | ||
| Power Consumption-Stand by | 115V AC (60HZ) (Max. 160W ), 220V AC (50HZ) (Max. 200W ) | ||
| Dimension (WxLxH) | Printer | 1760 x 1160 x 1140 mm (69.3 x 45.7 x 44.9 in.) | |
| Shipping | 2000 x 1300 x 1360 mm (78.7 x 51.2 x 53.5 in.) | ||
| Weight | Printer | 272 Kg | |
| Shipping | 433 Kg | ||
| *Above specifications are subject to change without prior notice. | |||
