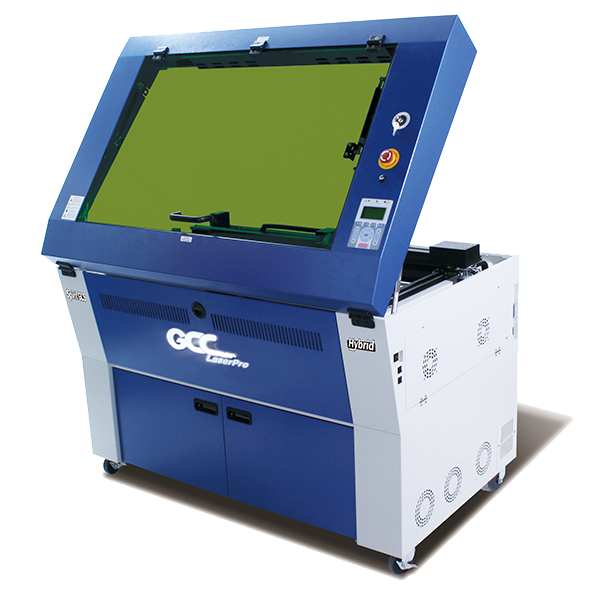

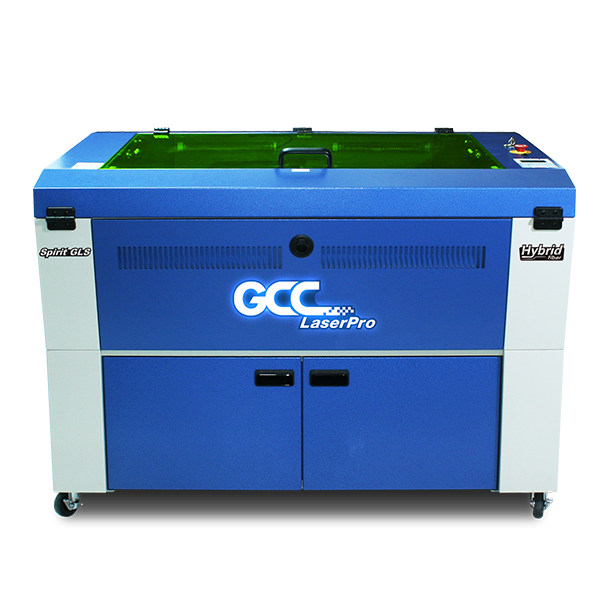

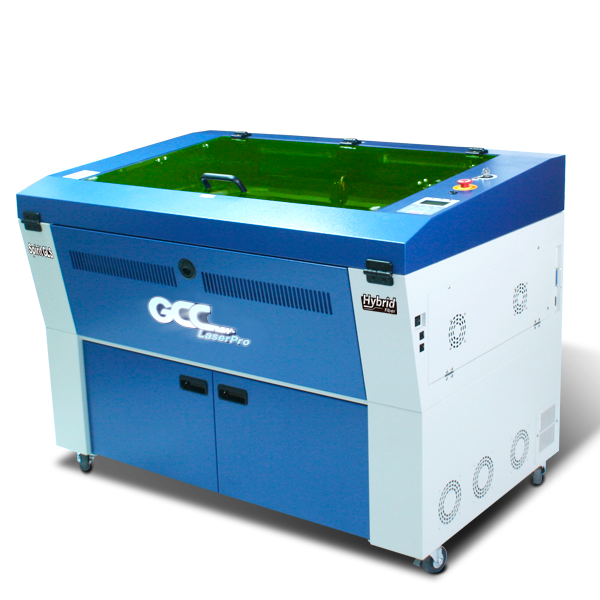

Spirit GLS Hybrid Laser Engraver | Laser Engraving, Vinyl Cutter, UV Printer - GCC

The Pass-through Door Switch Module is designed to activate the laser when the door is open which conforms the CDRH safety required by FDA.

When the laser system is on duty, it will bring a lot of dust result from the material and it will contaminate the lenses and mirrors. Dust Prevention Window can keep lenses and mirrors clean to promote longer laser life and increase the effect of air induction.

An innovative technology that integrates the ventilation box with a honeycomb table or Aluminum grid cutting table. The result is not only a precise cut with sharp edges, but also a clean laser table to work on.

The External Control Interface Board is an optional item that allows users to set up GCC laser machines for communication with external devices such as odor reduction units, robot arms and others via a 5V or 12V signal to form an automatic production line. Another useful practice applies in certain working environments when users are required to set up an extra remote interlock control or when laser machines are allowed to be switched off if a security device is triggered.

The grid cutting table is an ideal pal for laser cutting. It lifts the work piece off the work table from hitting by laser reflection while supports it with reinforced grid design. The dust and vapor created during laser cutting are then taken away effectively through the grid by down vacuum funnel exhaust. Rather than handling rigid materials, grid cutting table also helps to fix flexible materials with the aid of down vacuum to keep constant focus distance and consistent cutting result. A clean and better

The GCC LaserPro SmartPRINT™ software features powerful functions, an intuitive interface and embedded GCC LaserPro laser parameter setting for both MAC and Windows users. Currently, this new optional solution is compatible with GCC Spirit Series, VenusII, C180II, MercuryIII, S290LS and MG380Hybrid laser engravers. And GCC X Series and T500 laser cutters. -- more laser models are expected to join the line in the near future.
． SmartPRINT™ will run in trial mode and will cut a horizontal lines through your

GCC LaserPro utilizes CCD module to enhance productivity as it is able to learn, memorize and locate the printed graphics to perform contour cutting and automatically make adjustments to ensure the material is cut correctly. The LaserPro CCD module allows you to create incredibly accurate laser cuts around images that are print on wood, acrylic, cardstock and more.

The honeycomb table is an ideal tool for laser cutting, especially when cutting materials into small pieces. It lifts the work piece off the work table from hitting by laser reflection while supports it with honeycomb cell design. The dust and vapor created during laser cutting are then taken away effectively through the honeycomb cell by down vacuum funnel exhaust. Rather than handling rigid materials, honeycomb table also helps to fix flexible materials with the aid of down vacuum to keep constant focus d

Laser cutting and engraving operation using the SmartGUARD Fire Alarm assures optimum safety. When there is a malfunction, the alarm system will be active and shut-down the operation system immediately.

A specially designed Air Compressor, by using an oil-less diaphragm, you help eliminate the harmful and damaging side effects of moisture on the laser optics. Also, provides the optimal air pressure your laser needs to blow away vaporized particles and helps prevents overheating. A must to keep lenses and mirrors clean to promote longer laser life.

GCC teams up with a UK company to offer the Purex fume extraction unit for its full-line LaserPro laser engraving and cutting systems. These Fume Extraction Systems are specifically designed to prevent personnel from inhaling hazardous fumes and dust generated during the process. Applicable to all GCC LaserPro engravers, the Purex Fume Extraction System represents the latest invention in the exhaust extraction and smoke reduction technology for all types of applications. Noise-free operation, high vacuum ca

Allows the laser system to perform at another level! By using the rotary attachment, engraving on cylindrical or round objects is now possible. This option uses a fourth axis to rotate your object 360° to allow engraving on cups, wine glasses or even a baseball with two types of conical fixture available. The minimum/maximum diameter and length of the working object is 90/180mm and 450mm respectively. Its maximum weight should not exceed 4kgs.

The indicator will flash to signal the end of job process and is ideal for working environment where audibility is weak.
Red light stands for “Error”; Green light stands for “ Stand-by”; Yellow light stands for “Machine is working / Insert the pass-through door key”
(This item is available for machine with 5272 V3 Mainboard and afterwards)

The rotary Chuck for LaserPro Spirit GLS is a handy tool used for engraving on cylindrical or spherical objects. In addition to the standard X, Y, Z axis, the rotary Chuck allows for a fourth axis which rotates the object 360° to allow for engraving on cups, wine glasses, and even spherical objects. The diameter range of the to-be-engraved object is 0.5mm to 120mm and the max. length of the object is 410mm. Its maximum weight should not exceed 4kgs.

The removable drawer design facilitates the cleaning of the SmartBOX™ making it easy for users to remove fallen debris simply by pulling out and sliding the drawer back in place after cleaning. Various set up choices, such as tipped bars/honeycomb table/platform, and easy transformation conveniently accommodates your work requirements.
